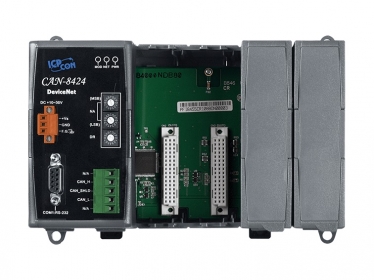

The CAN-8424 main unit based on the modular design offers many good features to the users and provides more flexibility in data acquisition and control system. In addition, ICP DAS also presents a CAN-8424 Utility tool to allow users to configure and create the EDS file for the specific IO modules plugged in (i-87K series or i-8000 series are supported). Therefore, users can easily apply the CAN-8424 embedded controller in DeviceNet network.
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 bytes (battery backup, data valid for up to 10 years) |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| Watchdog Timer | Watchdog IC |
| LED Indicators | |
|---|---|
| Status |
1 x Power 2 x DeviceNet status |
| I/O Expansion | |
|---|---|
| Slots | 4 slots |
| COM Ports | |
|---|---|
| Ports |
1 x RS-232 (Utility Port) 9-pin male D-Sub (DTE: RxD, TxD, RTS, CTS, DTR, DSR, RI, GND) |
| DeviceNet | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Connection Supported |
1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O 1 connection for COS/Cyclic I/O |
| Baud Rate | 125 k, 250 k, 500 k |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | Volume I, Release 2.0 & Volume II, Release 2.0 |
| Node ID | 0 ~ 63 |
| Shutdown Message | Yes |
| Subscribe | Group 2 Only Server |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 188 x 132 x 91 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
